Secondary battery electrode manufacturing process

Electrode is a key material that determines the performance of lithium ion battery.
E2 TECH produces and supplies high-quality electrodes using its technology accrued over nearly two decades of research on mixing, coating, and pressing cathodes as well as anodes.
Secondary battery electrode production
  • Mixing

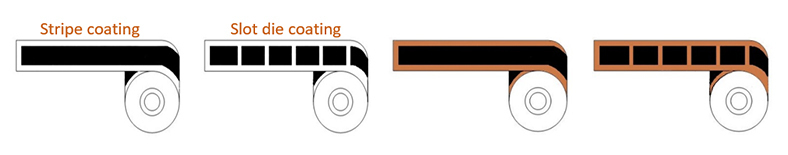

  • Coating
  • Roll Pressing
  • Vacuum Drying
We at E2 Technology. Co., Ltd. aims to satisfy our customers by maximizing the characteristics of electrodes by applying various materials.
Active Material
Please scroll left and right.
Electrode Material Foil Solvent
Cathode Nickel Cobalt Aluminum (NCA)
Nickel Cobalt Manganese (NCM)
Lithium Manganese Oxide (LMO) 		AL Foil (15~20㎛) NMP
Anode Graphite
Silicon
LTO (Lithium Titan Oxide) 		Cu Foil (6~10㎛) NMP or Water
Please scroll left and right.
CATHODE ANODE
Contents NCM NCA LMO Artificial Graphite Natural Graphite
Li[Ni,Co,Mn]O2 Li[Ni,Co,AI]O2 LiMn2O4 Carbon(C)

Layered structure
Layered structure
Spinel structure
Layered structure (modified)
Layered structure (unmodified)
Energy Capacity 140~220 mAh/g 180~220 mAh/g 100 mAh/g 280~360 360~370
Specification
Please scroll left and right.
Foil Width Coating Width Non-coating Length Winding Roll
(Diameter)		 Weight
MAX 400mm MAX 360mm MIN 10mm Ø 600mm 100Kg
