Battery line installation services

E2 Technology works with the best equipment and systems vendors for each production process to provide services from customized cell design to production layout, equipment manufacturing, installation, inspection, and trial production.

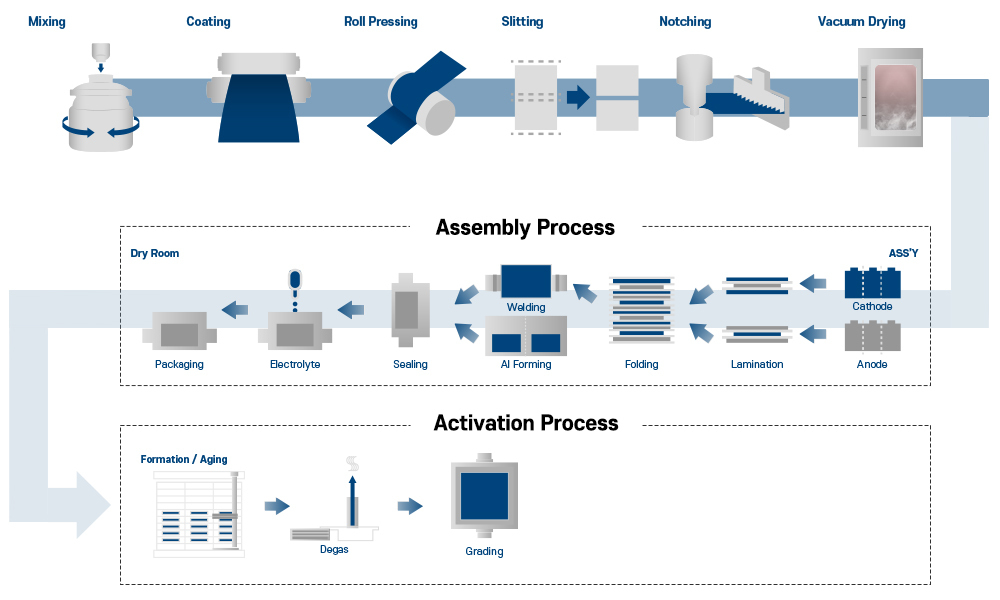

  • ① Mixing Process@The mixing process involves measuring and blending various raw materials needed to create the anode and cathode. In the mixing process, active materials and solvents are combined to create a slurry.
    ① Mixing Process The mixing process involves measuring and blending various raw materials needed to create the anode and cathode. In the mixing process, active materials and solvents are combined to create a slurry.
  • ② Coating Process@The completed slurry from the mixing process goes through the coating process, where it is thinly coated onto copper and aluminum foils using a coating machine. The coated electrodes are then dried in an oven above 100 degrees.
    ② Coating Process The completed slurry from the mixing process goes through the coating process, where it is thinly coated onto copper and aluminum foils using a coating machine. The coated electrodes are then dried in an oven above 100 degrees.
  • ③ Roll Pressing Process@After the coating and drying are complete, the roll pressing process follows, where the electrode passes between two large rolling machines. As the electrode becomes flatter, its energy density increases.
    ③ Roll Pressing Process After the coating and drying are complete, the roll pressing process follows, where the electrode passes between two large rolling machines. As the electrode becomes flatter, its energy density increases.
  • ④ Slitting Process@In the slitting process, the flattened electrodes from the roll pressing process are cut vertically according to their size.
    ④ Slitting Process In the slitting process, the flattened electrodes from the roll pressing process are cut vertically according to their size.
  • ⑤ Notching Process@The notching process involves cutting the electrode horizontally and creating V-shaped grooves, positive (+), and negative (-) tabs, completing the entire electrode process.
    ⑤ Notching Process The notching process involves cutting the electrode horizontally and creating V-shaped grooves, positive (+), and negative (-) tabs, completing the entire electrode process.
  • ⑥ Vacuum Dryer (V/Dryer) Process@This process dries moisture and foreign substances in a vacuum before moving on to the assembly process.
    ⑥ Vacuum Dryer (V/Dryer) Process This process dries moisture and foreign substances in a vacuum before moving on to the assembly process.
